DELIVERY GRILLES

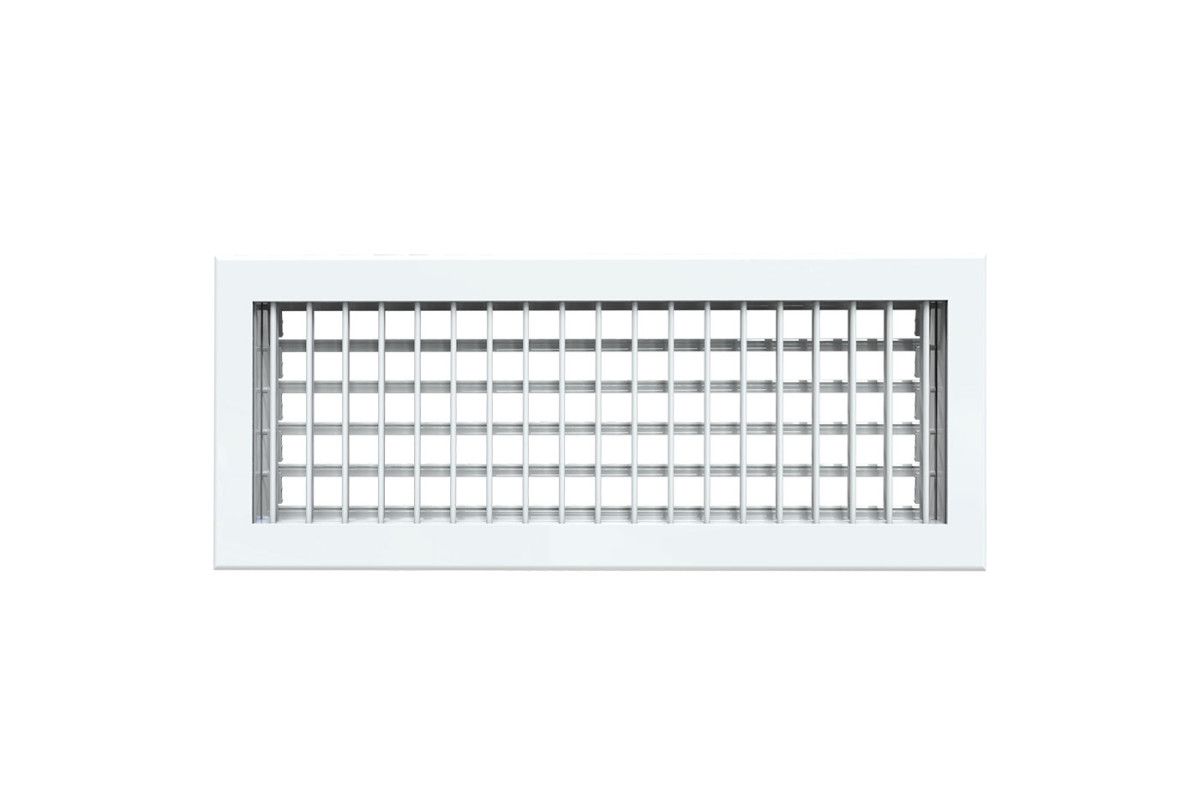

Delivery grille in white painted aluminium for low-prevalence ducted unit
The delivery grille can be installed on plenums, rectangular ducts or on the wall.
It consists of a double row of individually adjustable horizontal and vertical flaps.
Features
- Made of white painted aluminium RAL 9010
- Fastening by means of clips /magnet
- Individually adjustable horizontal and vertical flaps
Models
Cod.: PWC100043
ALUMINIUM SUPPLY GRILLE, POWDER PAINT FINISH WHITE 374 x 214mm
- INSTALLATION HOLE SIZE B [mm] 350
- INSTALLATION HOLE SIZE A [mm] 185
- EXTERNAL FRAME DIMENSIONS D [mm] 387
- EXTERNAL FRAME DIMENSIONS C [mm] 222
- BACK NECK DIMENSIONS F [mm] 335
- BACK NECK DIMENSIONS E [mm] 170
Cod.: PWC100044
ALUMINIUM SUPPLY GRILLE, POWDER PAINT FINISH WHITE 524 x 214mm
- INSTALLATION HOLE SIZE B [mm] 500
- INSTALLATION HOLE SIZE A [mm] 185
- EXTERNAL FRAME DIMENSIONS D [mm] 537
- EXTERNAL FRAME DIMENSIONS C [mm] 222
- BACK NECK DIMENSIONS F [mm] 485
- BACK NECK DIMENSIONS E [mm] 170
Cod.: PWC100055
SUPPLY GRILLE HOLE 865x185 IN ALUMINIUM FOR LOW HEAD DUCTED UNIT - WHITE
- INSTALLATION HOLE SIZE B [mm] 865
- INSTALLATION HOLE SIZE A [mm] 185
- EXTERNAL FRAME DIMENSIONS D [mm] 902
- EXTERNAL FRAME DIMENSIONS C [mm] 222
- BACK NECK DIMENSIONS F [mm] 850
- BACK NECK DIMENSIONS E [mm] 170
Cod.: PWC100057
SUPPLY GRILLE HOLE 825x225 IN ALUMINIUM FOR LOW HEAD DUCTED UNIT - WHITE
- INSTALLATION HOLE SIZE B [mm] 865
- INSTALLATION HOLE SIZE A [mm] 225
- EXTERNAL FRAME DIMENSIONS D [mm] 862
- EXTERNAL FRAME DIMENSIONS C [mm] 262
- BACK NECK DIMENSIONS F [mm] 810
- BACK NECK DIMENSIONS E [mm] 210
Cod.: PWC100058
SUPPLY GRILLE HOLE 600x170 IN ALUMINIUM FOR LOW HEAD DUCTED UNIT - WHITE
- INSTALLATION HOLE SIZE B [mm] 825
- INSTALLATION HOLE SIZE A [mm] 170
- EXTERNAL FRAME DIMENSIONS D [mm] 637
- EXTERNAL FRAME DIMENSIONS C [mm] 207
- BACK NECK DIMENSIONS F [mm] 585
- BACK NECK DIMENSIONS E [mm] 155
Cod.: PWC100059
SUPPLY GRILLE HOLE 645x95 IN ALUMINIUM FOR LOW HEAD DUCTED UNIT - WHITE
- INSTALLATION HOLE SIZE B [mm] 600
- INSTALLATION HOLE SIZE A [mm] 95
- EXTERNAL FRAME DIMENSIONS D [mm] 682
- EXTERNAL FRAME DIMENSIONS C [mm] 132
- BACK NECK DIMENSIONS F [mm] 630
- BACK NECK DIMENSIONS E [mm] 80
Cod.: PWC100060
SUPPLY GRILLE HOLE 670x600 IN ALUMINIUM FOR LOW HEAD DUCTED UNIT - WHITE
- INSTALLATION HOLE SIZE B [mm] 645
- INSTALLATION HOLE SIZE A [mm] 160
- EXTERNAL FRAME DIMENSIONS D [mm] 707
- EXTERNAL FRAME DIMENSIONS C [mm] 197
- BACK NECK DIMENSIONS F [mm] 655
- BACK NECK DIMENSIONS E [mm] 145
Cod.: PWC100062
SUPPLY GRILLE HOLE 545x155 IN ALUMINIUM FOR LOW HEAD DUCTED UNIT - WHITE
- INSTALLATION HOLE SIZE B [mm] 670
- INSTALLATION HOLE SIZE A [mm] 155
- EXTERNAL FRAME DIMENSIONS D [mm] 582
- EXTERNAL FRAME DIMENSIONS C [mm] 192
- BACK NECK DIMENSIONS F [mm] 530
- BACK NECK DIMENSIONS E [mm] 140
